Slotted hole perforated metal is made of metal plates matching punching die in different sizes of aperture, forming into mesh rolls or mesh sheets with slotted holes by CNC punch pressing, cutting, slicing, leveling, grease, deburring, surface treatment and other series of processes. For slotted hole, two long sides are straight line, two ends are semi-circular. Slotted hole has the good features including not easy to deformation, flat surface, long service life and so on. Compared with round hole, slotted hole has larger ventilation and open area. Currently, we have 14 complete production lines and advanced numerical equipment, producing slotted hole perforated metal in various kinds of specification by different combination of material, hole pitch and open area. Slotted hole perforated metal is mainly used in filtration and architectural construction.

Materials

Slotted hole perforated shhets is available in three series of different wire materials:

Carbon/plain steel: low carbon steel, mild carbon steel, high carbon steel

Stainless steel: 201, 202, 304, 316, 321, 410, 430

Copper: brass, pure copper, phosphor bronze

Aluminum: 1050, 1060, 1100, 5052, 5056

Other available, please ask

Applications

Slotted hole perforated metal is mainly used in filtration and architectural construction.

As screen media, slotted hole is ideal screen mesh for liquid filtration and solid filtration, especially for grape wine and food processing industries.

And also for its various kinds of hole arrangements and large open area, slotted hole perforated metal has become popular in building decoration materials, such as ceiling plate, facades, vents and so on, providing fantastic visual effect as well as meeting clients’ requirements in perforated technique aspect.

Slotted hole perforated metal rolls

Roll width 1 m, 1.22 m, 1.5 m to 4 m

Roll length 15 m, 30 m to 60 m

Other rolls size on request

Slotted hole perforated metal panels

Panel width: 1 m, 1.22 m to 2 m

Panel length: 1 m, 1.5 m, 2 m to 10 m

Other sheets size on request

Pattern angle of slotted hole

Currently, there are two kinds of pattern in slotted perforated sheets production including “Z ” type staggered mode and 90° straight mode.

“Z “ type staggered provide natural high strength and wide open area.

90°, straight arrangement for perforated metal.

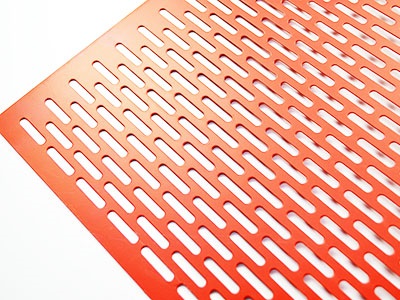

Slotted hole perforated metal sheets

Slotted hole round end metal sheets

When ordering or requesting a quote for slotted hole perforated metal, please specify:

Number of length 2 m for 1 m wide panels or size required

Shape eg. slotted hole

Pattern angle eg. “Z “ type staggered

Hole size eg. 5 x 20 mm

Pitch eg. 9 x 25 mm

Thickness eg. 1.5 mm

Material eg. 304 stainless steel
