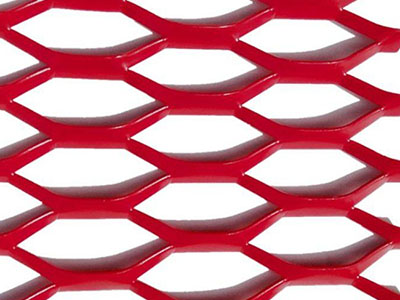

Made from more toughness materials of metal plates, hexagonal hole expanded metal is slit and stretched by punching machines, forming into a kind of metal plate with hexagonal hole. During production, the angle between bevel edge and straight edge is a little larger. So compared with diamond hole expanded metal, hexagonal hole can provide larger open area. Expanded metal sheets has the features of high toughness, impact resistance, beautiful appearance, sturdy construction and other characteristics. According to different hole sizes and surface treatments, nowadays hexagonal hole expanded metal are more and more widely used in various of fields with its long service life.

The common type of hexagonal hole expanded metal mesh is raised type. The expanded metal is directly slit and stretched by punching machines without any other processing. The strand width and bond come into an angle with the plate surface. This kind of structure increase the strength and hardness of expanded metal, it also brings better anti-slipping and reinforcing performance.

Materials

Hexagonal hole expanded metal is available in four series of different wire materials:

Carbon/plain steel: low carbon steel, mild carbon steel, high carbon steel

Stainless steel: 201,202, 304, 316, 321, 410, 430

Copper: brass, pure copper, phosphor bronze

Aluminum: 1050, 1060, 1100, 5052, 5056

Other available, please ask

Applications

Hexagonal hole expanded mesh sheets is mainly used for the following fields:

Civil engineering, building walls

Cooling hood and mechanical transmission shield mesh of all kinds of vehicles, air compressors and so on.

Sports venues fence, road green belt protection mesh, municipal engineering protection mesh.

Heavy steel mesh is for the tanker car pedal mesh and many other usages..

Hexagonal hole expanded metal rolls

Roll width 1 m, 1.22 m, 1.5 m to 4 m

Roll length 15 m, 30 m to 60 m

Other rolls size on request

Hexagonal hole expanded metal panels

Panel width: 1 m, 1.22 m to 2 m

Panel length: 1 m, 1.5 m, 2 m to 10 m

Other sheets size on request

Types

When ordering or requesting a quote for hexagonal hole expanded metal, please specify:

Number of length 2 m for 1 m wide panels or size required

Shape eg. hexagonal hole

Hole size eg. 35 x 12 mm

Strand eg. 2.0 mm

Thickness eg. 2.0 mm

Material eg. 304 stainless steel
