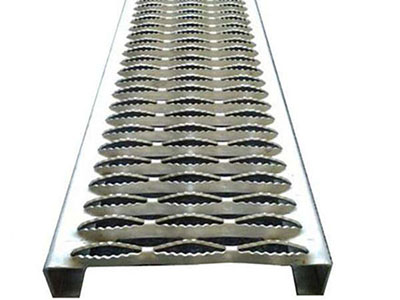

Diamond shape safety gratings is a kind of one-piece metal plank grating, it is manufactured by a cold forming process in the shape of a channel and serrated diamond matrix alking surface. The safety grating help provides maximum slip resistance, even when exposed to snow, ice, grease or oil. This kind grating has good features of lightweight, high strength, slip-resistant walking surfaces, fast and easy installation, long life span, low maintenance.

WEB WIRE MESH can offer safety gratings in the standard specifications, the widths available are 7" (3 diamond), 9-1/2" (4 diamond) and 11-3/4" (5 diamond). The plank grating is commonly constructed with materials of grade 304 stainless steel.

Safety grating metal materials

Safety grating is available in three series of different wire materials:

Carbon/plain steel: low carbon steel, mild carbon steel, high carbon steel

Stainless steel: 201, 202, 304, 316, 321, 410, 430

Aluminum: 5052, 5056

Other available, please ask

Applications

Safety grating provide superior slip resistance in all directions, so it is widely used for stair treads, walkways channels, work platforms, catwalks, balconies, storage areas, and flat sheet flooring for industrial applications.

Type

Technical parameter

Safety grating data sheets

When ordering or requesting a quote for safety grating, please specify:

Number of length 2 m for 1 m wide panels or size required

Width eg. 11 3/4 inch

Diamond eg. 5 Nos.

Channels depth eg. 2 inch

Thickness eg. 1.3 mm

Material eg. 304 stainless steel

Standard & Compare

11 3/4 Inch Diamond Shaped Safety Grating
